You can build Angular apps using plain old JavaScript and TypeScript. I’ve been using plain JavaScript for the past Angular demonstrations, because I felt in love again with JavaScript after spending years with CoffeeScript (But that’s a different story). However, teams at Google and Microsoft were working together in these days to marriage Angular and TypeScript. If you don’t know TypeScript yet, go and learn it. It will change the way how you write Frontend stuff in the upcoming years. You can think of it as todays *JavaScript on steroids. It makes you more productive, it makes your code more robust, you’ve to write less plumbing because the TypeScript Compiler (TSC) generates all the good parts of JavaScript and knows about the edge-cases.

THINK: When I use TypeScript I’ll end in doing less keystrokes; That means I’ll be faster 🤘

Go and checkout the repository on GitHub. You can find the entire application there. To automate the build process I’ve created a gulpfile.js. It takes care about all the transpiling, copying and other required build steps to generate the Electron apps for all three major platforms (Windows, Linux and of course MacOS).

By using gulp-typescript, you can easily compile the TypeScript sources to plain JavaScript which is managed by SystemJS at runtime.

gulp.task('private:build-app', function(){
    var project = typescript.createProject('tsconfig.json');
    var tsResult = project.src()
        .pipe(typescript(project));
    return tsResult.js.pipe(gulp.dest('dist/frontend'));
});

See the entire gulpfile.js here.

More important are some pitfalls when combining Angular with Electron. There are plenty of demo applications available out there. However, a quick google didn’t bring up a single sample using angular’s new component router.

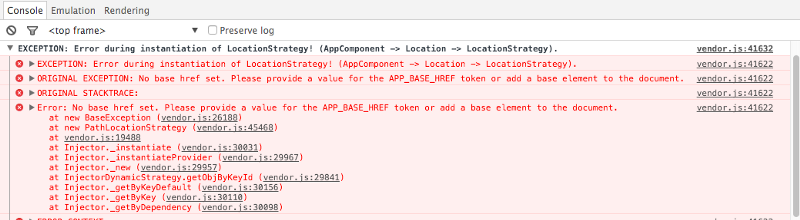

As mentioned within angular’s developer guide on angular.io, the router requires a <base href="/foo"/> or <base href="/"> in order to work as expected. If you don’t add the base node within <head> Angular throws an error like shown in figure 1.

Angular app with missing Base href

Adding the <base /> element works fine when running inside of the Browser. However, it prevents the app from finding the routes when executing the same source in Electron. You can alternatively configure the base within your application’s bootstrap routine.

This is required when you’re loading scripts from within Electron’s renderer process.

Snippet 1 shows the boot.ts file which is responsible for bootstrapping our Angular app.

import { provide } from 'angular2/core';
import { bootstrap } from 'angular2/platform/browser';
import { AppComponent } from './components/app/app.component';
import { ROUTER_PROVIDERS, APP_BASE_HREF } from 'angular2/router';

bootstrap(AppComponent, [ROUTER_PROVIDERS,
     provide(APP_BASE_HREF, {useValue : '/'})]);

The essential and new part here is the usage of provide to tell angular where the new base is. However, there is more required. Angular is offering a Location service which is responsible for interacting with the browser’s URL. Check out app.component.ts (Snippet 2); the RouteConfig can take an optional useAsDefault property of type boolean. Setting this to true works fine when not using provide but the combination of provide and useAsDefault: true didn’t work for me here. That’s why I used the Location service (provided by Angular’s DI container) to redirect the user immediately to the Splash Component.

import { Component } from 'angular2/core';
import { RouteConfig, ROUTER_DIRECTIVES, Location } from 'angular2/router';
import { SplashComponent } from "../splash/splash.component";

@Component({
    selector: 'sampleapp',
    templateUrl: 'templates/app.html',
    directives: [ROUTER_DIRECTIVES]
})
@RouteConfig([
    { path: '/splash', name: 'Splash', component: SplashComponent }
])
export class AppComponent {

  constructor(private _location: Location) {
    _location.go('/splash');
  }

}

Within the current publicly available version of this sample,I’ve to load the splash template by using the plain template property when using templateUrl as I did for the app.component.ts angular2 isn’t able to find the template. For now, it seems like the template is requested after the AppBaseHref is set and in combination with electron’s path handling Angular isn’t able to find the template at a given URL.

Action required

If you’ve any idea how to fix that feel free to send me a pull request on GitHub or chat with me about it.
