Integrating Azure Key Vault with Azure Container Services

With Azure Key Vault, Microsoft is offering a dedicated and secure service to manage and maintain sensitive data like Connection-Strings, Certificates, or key-value pairs.

We’re hoping to see a native Azure Key Vault integration for Azure Container Services (ACS) in the near future. At least the official FAQ mentions the feature on the product’s roadmap. Until this features will be shipped and if you’re using another Kubernetes environment - such as GCP or AWS offerings -, you’ve to integrate Azure Key Vault manually into your application building blocks to get rid of storing most sensitive data in plain old Kubernetes Secrets.

I wrote “most” because ClientId, ClientSecret and the Key Vault identifiers - which will be used to access the Azure Key Vault instance - still need to be persisted somewhere. This drawback may be obsolete once we’ve native support for Azure Key Vault in AKS.

Creating an Azure Key Vault instance

Let’s get started with creating a new Azure Key Vault instance, it’s really straightforward using Azure CLI:

az keyvault create
  --resource-group demo-rg
  --name demo-kv
  --location westeurope

Store a secret in KeyVault

When the instance has been created, store a secret value for demonstration purpose:

az keyvault secret set
  --name SampleSecret
  --value SecretValue
  --description "Sample Secret Value"
  --vault-name demo-kv

Create an Azure AD App Registration and Service Principal

In order to access values from Azure Key Vault, an Azure AD App Registration and corresponding Service Principal are required. First, create a new Azure AD App Registration using:

az ad app create
  --display-name aks-demo-kv-reader
  --identifier-uris https://aks-demo-kv-reader.somedomain.com
  --query objectId

> "68981428-2a09-411b-931a-dd1ae76d8775"

Because the command specifies --query objectId, only the Object Identifier will be returned. Use the ObjectId to create a Service Principal for your new App Registration:

az ad sp create
  --id 68981428-2a09-411b-931a-dd1ae76d8775
  --query appId

> "bc52fe12-ead8-46d3-81d6-05dc258af3a9"

Also in this snippet, --query is used to pull the only relevant information — the Service Principal’s Identifier. This Identifier is required later to define an access-policy for Azure KeyVault. Unfortunately, Azure CLI has no command to create a new key for the App Registration, this step has to be done using the Azure Portal for now.

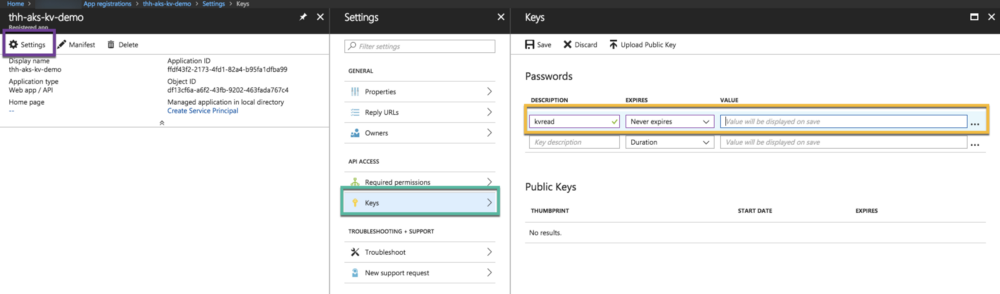

Open the Azure Portal in your Browser and Navigate to the AD App Registration you created a minute ago. From the Azure DASHBOARD go to AZURE ACTIVE DIRECTORY and open the APP REGISTRATIONS blade. Here, select the Registration named: aks-demo-kv-reader from the list of all registrations. Click on SETTINGS (purple square), KEYS (green square), provide a new description and set an expiration date for the Key (yellow square).

Create a new Key for the App Registration

Once finished press SAVE, now the portal will show the value copy the value, it won’t be displayed anymore. It represents our ClientSecret, the ClientId can be found directly on the App Registration and it’s labeled as Application ID (starting with ffd… in the image above).

Connecting the Service Principal with Azure Key Vault

In order to integrate the new Azure Service Principal with Azure Key Vault, an Access Policy has to be defined. For demonstrating purpose, we’ll assign GET and LIST permissions to the Service Principal and limit it to Secrets. (Using both, CLI and Portal you can specify permissions for Secrets, Certificates and Keys).

az keyvault set-policy
  --name demo-kv
  --spn bc52fe12-ead8-46d3-81d6-05dc258af3a9
  --secret-permissions get list

Access Key Vault from a .NET Core API

As an example, I’ll take a simple .NET Core Web API which will read the previously persisted value of SampleSecret and expose it over HTTP. Starting from a new .NET Core Web API project, several changes have to be made in Program.cs. .NET Core ships with built-in support for Azure Key Vault. That said, you need to use ConfigurationBuilder to instruct your app in order to read configuration values from Azure Key Vault.

public class Program
{
    public static void Main(string[] args)
    {
        BuildWebHost(args).Run();
    }

    public static IWebHost BuildWebHost(string[] args)
    {
        var configBuilder = new ConfigurationBuilder()
            .AddEnvironmentVariables();

        var stageOneConfig = configBuilder.Build();
        var clientId = stageOneConfig.GetValue<string>("clientid");
        var clientSecret = stageOneConfig.GetValue<string>("clientsecret");
        var keyVaultIdentifier = stageOneConfig.GetValue<string>("keyvaultidentifier");
        var keyVaultUri = $"https://{keyVaultIdentifier}.vault.azure.net/";

        configBuilder
            .AddAzureKeyVault(keyVaultUri, clientId, clientSecret);

        return WebHost.CreateDefaultBuilder(args)
            .UseConfiguration(configBuilder.Build())
            .UseStartup<Startup>()
            .Build();
    }
}

As you can see, the implementation is still straightforward. The Azure Key Vault configuration - three values (ClientId, ClientSecret and KeyVault-Identifier) - are read from environment variables.

Now it’s time to read the SampleSecret we previously stored in Azure Key Vault and expose its value via HTTP by changing the default ValuesController as shown in the following snippet:

[Route("api/[controller]")]
public class ValuesController : Controller
{
    private IConfiguration Configuration { get; }
    public ValuesController(IConfiguration config)
    {
        Configuration = config;
    }

    [HttpGet]
    public IActionResult Get()
    {
        var secret = Configuration.GetValue<string>("SampleSecret");
        return Ok(secret);
    }
}

In order to deploy the .NET Core Web API to Kubernetes, we need a Docker Image which could be instantiated by Kubernetes and executed within a POD. Writing Dockerfiles for .NET Core apps is straightforward. You can use a two-stage-Dockerfile to ensure a small, handy Docker Image.

FROM microsoft/aspnetcore-build:latest AS builder

WORKDIR /app
COPY src/AzureKeyVaultDemoApi.csproj ./
RUN dotnet restore
COPY src/. ./
RUN dotnet publish -c Release -o out

FROM microsoft/aspnetcore:latest

WORKDIR /app
COPY --from=builder /app/out .

ENTRYPOINT ["dotnet", "AzureKeyVaultDemoApi.dll"]

I’m using Azure Container Registry (ACR) instead of public Docker Hub to store and consume Docker Images in Kubernetes. For my setup, the docker build command looks like this:

docker build -t demoacr.azurecr.io/azkv-demo:0.0.1 .

Once the image has been built, you need to login to your private docker registry (here ACR):

az acr login --name demoacr

Finally, the image needs to be pushed using:

docker push demoacr.azurecr.io/azkv-demo:0.0.1

Deploying Secrets to Kubernetes

In order to bring the three essential configuration values to Kubernetes, a regular Kubernetes Secret will be used. You can generate the base64 representations of ClientId, ClientSecret and KeyVaultIdentifier as shown below:

echo -n "YourClientId" | base64
echo -n "YourClientSecret" | base64
echo -n "YourKeyVaultIdentifier" | base64

Once you have the encoded values, create a secret.yaml and specify the secret.

apiVersion: v1
kind: Secret
metadata:
  name: azkv-demo-secret
  type: Opaque
data:
  clientId: TmljZSwgeW91IGRlY29kZWQgaXQ=
  clientSecret: UGxlYXNlIGNsYXAgZm9yIHRoZSBzdG9yeSA6RA==
  keyVaultIdentifier: TGVhdmUgYSBjb21tZW50IGlmIHlvdSBkZWNvZGVkIGl0

Deploy it to Kubernetes using kubctl create -f secret.yaml.

Deploying the Application to Kubernetes

A simple pod is enough to verify the integration of Azure Key Vault. If you read through the following pod.yaml, linking the Environment Variables to the Kubernetes secret is essential.

apiVersion: v1
kind: Pod
metadata:
  name: azkv-demo-pod
spec:
  containers:
  - name: azkv-demo-container
    image: demoacr.azurecr.io/azkv-demo:0.0.1
    ports:
      - containerPort: 8080
    env:
      - name: ASPNETCORE_URLS
        value: http://*:8080
      - name: clientid
        valueFrom:
          secretKeyRef:
            name: azkv-demo-secret
            key: clientId
      - name: clientsecret
        valueFrom:
          secretKeyRef:
            name: azkv-demo-secret
            key: clientSecret
      - name: keyvaultidentifier
        valueFrom:
          secretKeyRef:
            name: azkv-demo-secret
            key: keyVaultIdentifier

Deploy the pod to Kubernetes using kubectl create -f pod.yaml.

Testing the Integration

Once the pod has been created, copy the name of the pod and use it to do a port forwarding for testing the Azure Key Vault integration

kubectl port-forward azkv-demo-pod 8080:8080

Now, issue an HTTP GET request to http://localhost:8080/api/values and you should receive the value you’ve persisted in Azure Key Vault previously. If you’ve installed curl on your machine, you can issue the request using the terminal, just invoke:

curl http://localhost:8080/api/values

> SecretValue

According to the snippet, you should see the SecretValue from Azure Key Vault.

Recap

Using Azure Key Vault is definitely the best solution to manage secure data for cloud-native applications. Integrating Azure Key Vault with Azure Container Services is fairly easy. Hopefully, the integration will become even easier once the AKS team ships native Key Vault support.
