Azure Container Services (ACS) makes it incredibly easy to spin up and manage Kubernetes clusters in the cloud. There are plenty of other Azure resources which you can use to build daily scenarios on a native cloud stack. Common scenarios are serving files from and writing important information to persisted locations. Azure offers many different storage capabilities. In this post, I’ll explain how to use an Azure File Share to serve content by using a .NET Core Web API.

Azure Files

Using Azure Files you can create SMB 3.0 file shares and access them from all over the world. No matter if you’re running a cloud-native application or working in a hybrid scenario, Azure Files can be accessed from everywhere. It’s easy to set up and reliable solution to deal with files from multiple places. Also if you build highly scalable applications in Kubernetes, Azure File Shares can easily be mounted using k8s volumes.

See the following link to get more detailed information about Azure Files and Azure File Shares.

Creating a Managed Azure File Share

For demonstration purpose, we’ll create a simple Azure File Share. Before actually creating the network share itself, a Storage Account (located in the same Azure location as your k8s cluster) is required.

Create the Azure Storage Account

Creating the Storage Account is pretty easy. For demonstration purpose, I’ll go with the cheapest configuration which means Standard_LRS. Depending on your scenario and requirements you may choose one of the advances and more reliable configurations.

# check if the storage account name of your choice is available
az storage check-name --name <STORAGE_ACCOUNT_NAME>

# if you found an available name, go create the storage account
az storage account create
    --name <STORAGE_ACCOUNT_NAME>
    --resource-group <RESOURCE_GROUP_NAME>
    --sku Standard_LRS

Create the Azure File Share

In order to create our Azure File Share, the connection string from our Storage Account is required. Using Azure CLI, we can simply ask for the connection string using:

az storage account show-connection-string
  --resource-group <RESOURCE_GROUP_NAME>
  --name <STORAGE_ACCOUNT_NAME>
  --output tsv

Azure CLI will print just the connection string itself, without any metadata. Copy that connection string. Now it’s time to create the share itself.

az storage share create
  --name <SHARE_NAME>
  --connection-string <STORAGE_ACCOUNT_CONNECTION_STRING>
  --account-name <STORAGE_ACCOUNT_NAME>

The command az storage share create will simply respond with a { created: true } JSON if the operation is finished. You can either mount the share on your operating system, use the Azure Portal or you can download and use the Azure Storage Explorer to upload files to your new Azure File Share.

Take the following image, save it as docker.jpg and upload it to the root of your Azure File Share.

Sample Docker Image
Sample image - place it in your Azure File Share as docker.jpg

Create a simple Web API

We’ll create a simple .NET Core Web API to serve a jpeg from the Azure File Share. Again there are plenty of choices about how to create the new .NET Core Web API project. I’ll use JetBrains Rider here. Use Rider’s New Project wizard to create the ASP.NET Core WebAPI project as shown in the following image.

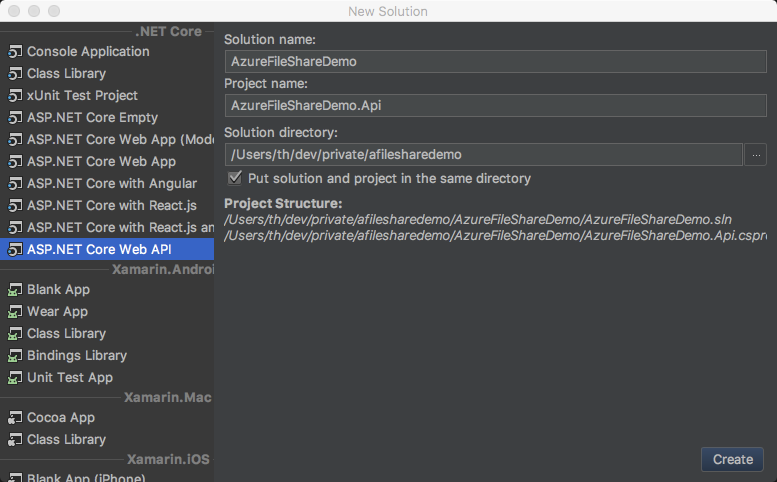

Create a new ASP.NET Core WebAPI using Rider
Create a new ASP.NET Core WebAPI using Rider

Once Rider has created the Project and pulled all the required NuGet packages, go and add a new Controller named ImageController and add the following source code.

using System.IO;
using System.Net.Mime;
using Microsoft.AspNetCore.Mvc;

namespace Probe.Api.Controllers
{
    [Route("api/[controller]")]
    public class ImageController : Controller
    {
        [HttpGet]
        public IActionResult Get()
        {
            var image = System.IO.File.OpenRead(Path.Combine("mnt","azure","docker.jpg"));
            return File(image, "image/jpeg");
        }
    }
}

As you can see, it’s a simple GET endpoint which will return the entire contents of a file located at ./mnt/azure/docker.jpg. Let’s create a Dockerfile to build an image for our API.

FROM microsoft/dotnet:2.0.0-sdk AS build-environment

LABEL maintainer="Thorsten Hans<thorsten.hans@gmail.com>"

WORKDIR /app
COPY ./src/*.csproj ./
RUN dotnet restore
COPY ./src ./
RUN dotnet publish -c Release -o out

FROM microsoft/aspnetcore:2.0.0

WORKDIR /app
COPY --from=build-environment /app/out .

ENTRYPOINT ["dotnet", "AzureFileShareDemo.API.dll"]

First, we restore all NuGet packages and publish the project using the microsoft/dotnet:2.0.0-sdk image, once publish as succeeded, a way smaller image microsoft/aspnetcore:2.0.0 (which is just providing the runtime for ASP.NET Core) is used to build our final docker image. Use docker build -t azure-file-share-sample . to build the docker image.

Once you’ve successfully built the docker image, you’ve to publish it either to the public docker hub or to a private container registry. If you want to keep the image private, go and read my article on how to use Azure Container Registry (ACR) with an existing Kubernetes cluster.

Create a Kubernetes deployment

A Kubernetes deployment configuration is just a simple yaml or json file which describes how our deployment should look like. In the following snippet we’re creating the Pod (it’s responsible for executing our docker container) and a Secret (it will contain all sensitive information about how the Pod should connect to Azure File Share).

Creating a Secret for Azure File Share connection settings

Secrets in Kubernetes can be created either using kubectl or by specifying it in a configuration file using yaml or json. If you want to describe your secret using a configuration file, you’ve to encode values manually as base64 upfront.

On macOS or Linux this can be done using:

echo -n "Any value that you want to encode" | base64

> QW55IHZhbHVlIHRoYXQgeW91IHdhbnQgdG8gZW5jb2Rl

Take the name of your storage account and the storage account connection string and encode them. Now create a new file, call it azure-file-share-deployment.yaml and open it in your favorite editor. Add the following code to define the secret.

apiVersion: v1
kind: Secret
metadata:
  name: azure-file-share-secret
type: Opaque
data:
  azurestorageaccountname: Rm9sbG93IHRoZSB3aGl0ZSByYWJiaXQ=
  azurestorageaccountkey: ZGV2ZWxvcGVycyBsb3ZlIGJhY29ucyBhbmQgbGFzZXJzLCBkb250IHlvdT8gTGVhdmUgYSBjb21tZW50IGlmIHlvdSBkZWNvZGVkIHRoaXMgOkQ=

Creating the actual Kubernetes deployment

The deployment can also be expressed using yaml. We’ll use the official Volumes API from Kubernetes to connect our Pod to Azure File Share and mount the file share to /app/mnt/azure Edit the azure-file-share-deployment.yaml to look similar to this

apiVersion: v1
kind: Secret
metadata:
  name: azure-file-share-secret
type: Opaque
data:
  azurestorageaccountname: Rm9sbG93IHRoZSB3aGl0ZSByYWJiaXQ=
  azurestorageaccountkey: ZGV2ZWxvcGVycyBsb3ZlIGJhY29ucyBhbmQgbGFzZXJzLCBkb250IHlvdT8gTGVhdmUgYSBjb21tZW50IGlmIHlvdSBkZWNvZGVkIHRoaXMgOkQ=
---
apiVersion: apps/v1beta1
kind: Deployment
metadata:
  name: azure-file-share-deployment
spec:
  replicas: 1
  template:
    metadata:
      labels:
        app: azure-file-share-sample
    spec:
      containers:
      - name: azure-file-share-sample
        image: <YOUR_ACR_NAME>.azurecr.io/azure-file-share-sample
        ports:
        - containerPort: 80
        imagePullPolicy: Always
        volumeMounts:
        - name: azure-fs
          mountPath: /app/mnt/azure
      imagePullSecrets:
      - name: <ACR_SECRET> # if you want to use ACR
      volumes:
      - name: azure-fs
        azureFile:
          secretName: azure-file-share-secret
          shareName: acs-file-share
          readOnly: true

So that’s a lot. But let’s look at the essential things. Most important is the volume definition underneath volumes. That’s where we provide a name for our volume and forward the configuration values from our secret(referenced by name). We also specify the volume to be read-only because our API is only allowed to serve files from there.

The second thing is inside of the container definition. we mount the volume to a local directory at /app/mnt/azure and again the volume that should be mounted if referenced by its name azure-fs in our example.

Deploying to Kubernetes

Deploying to Kubernetes is fairly simple. Just navigate to the folder where your azure-file-share-deployment.yaml is located and execute:

kubectl create -f azure-file-share-deployment.yaml

Check the pod deployment by executing kubectl get pods after a couple of seconds your Pod should be there and print status as running. Normally you’ve to create a Service in Kubernetes, which will automatically deploy Azure Load Balancer 🚀 to expose your service to the public world. But for demonstration purpose or development you can also use the handy kubectl port-forward command.

kubectl port-forward <POD_NAME> 5000:80

This command will block the terminal and forward all requests to your local port 5000 to port 80 of the Pod. Open your browser and navigate to http://localhost:5000/api/image and it should return this beautiful image.

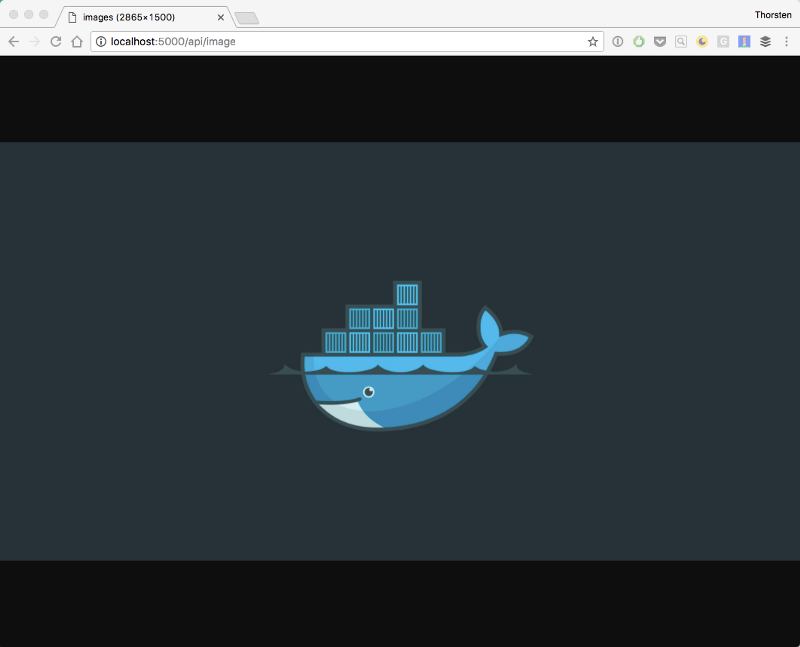

Our docker image delivered by ASP.NET Core from an Azure File Share
Our docker image delivered by ASP.NET Core from an Azure File Share

Recap

As you can see it’s fairly easy to use powerful services offered by Azure and use them to build your cloud-native applications based on Docker and Kubernetes.
